Lauderdale Speedometer & Compass

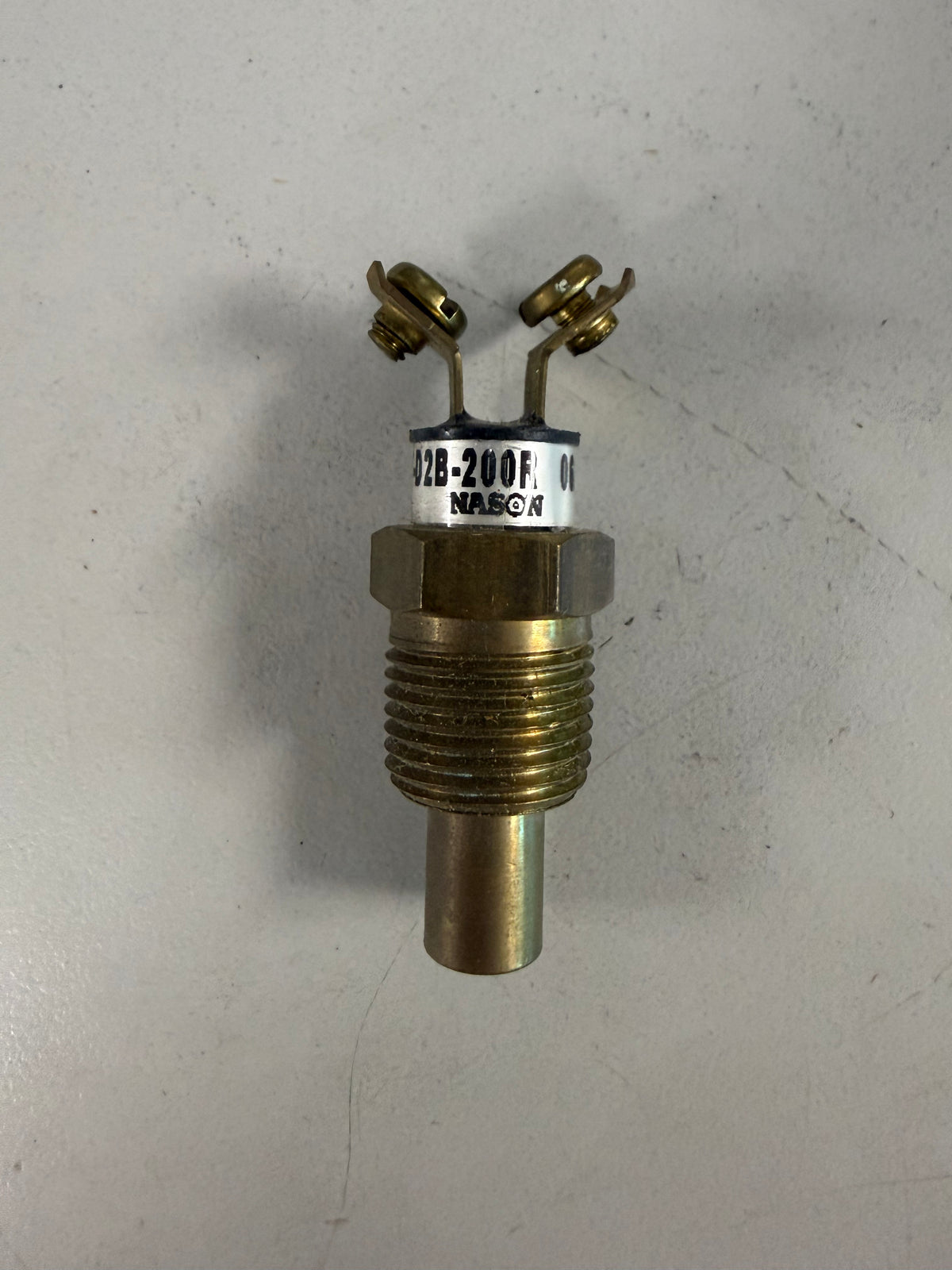

Nason TT-D2B-200R is a bimetal immersion temperature switch
Nason TT-D2B-200R is a bimetal immersion temperature switch
No reviews
Normaler Preis
$83.20 USD
Normaler Preis
Verkaufspreis
$83.20 USD
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
- Model (TT): Bi-metal immersion temperature switch featuring gold-diffused, fine silver contacts for stable electrical connectivity in low-current environments. [1, 2]
- Media Connection (D): This represents a custom or specific thread/probe length configuration (note: standard numeric options include 1 for 1/2" NPT, 2 for 3/8" NPT, and 3 for 1/4" NPT; the "D" variant points to a specialized factory option). [1, 2]
- Circuit Form (2B or B): SPST, Normally Closed (NC) circuit structure. The circuit remains closed under normal operating temperatures and opens once the set point is reached. [1]
- Fixed Set Point (200): Factory preset to actuate at 200°F (93.3°C) with a standard tolerance of ±5°F. [1]
- Set Point Direction (R): Rising. The switch reacts as the system temperature climbs up to the 200°F threshold. [1, 2]
