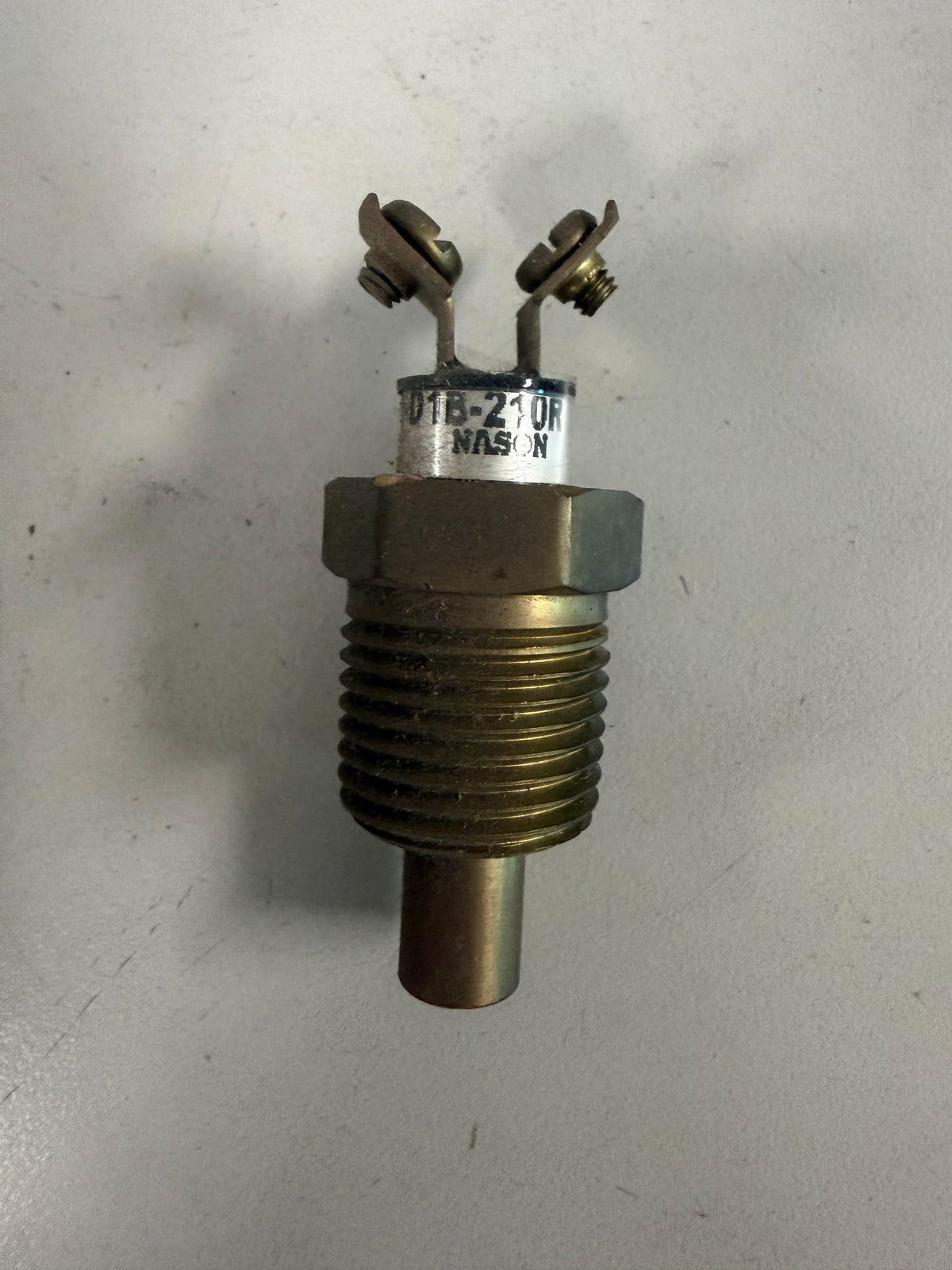

Nason TT-D1B-210R is a bimetal immersion temperature switch

Nason TT-D1B-210R is a bimetal immersion temperature switch

$83.20 USD
$83.20 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
  • Model (TT): Factory-preset, bimetal immersion temperature switch utilizing gold-diffused, fine silver contacts for reliable low-current electrical switching.
  • Probe Length (D): Features a short 1/2" probe length designed to fit into shallow fluid or air paths without obstruction.
  • Media Connection (1): Standard 1/2" NPT male thread process connection.
  • Circuit Form (B): SPST, Normally Closed (NC) circuit logic. The contacts stay closed under normal operating temperatures and open once the system reaches its limit.
  • Fixed Set Point (210): Factory preset to actuate at 210°F (98.9°C) with a standard manufacturing tolerance of ±5°F.
  • Set Point Direction (R): Rising. The switch activates as the system temperature climbs up to the 210°F threshold.
