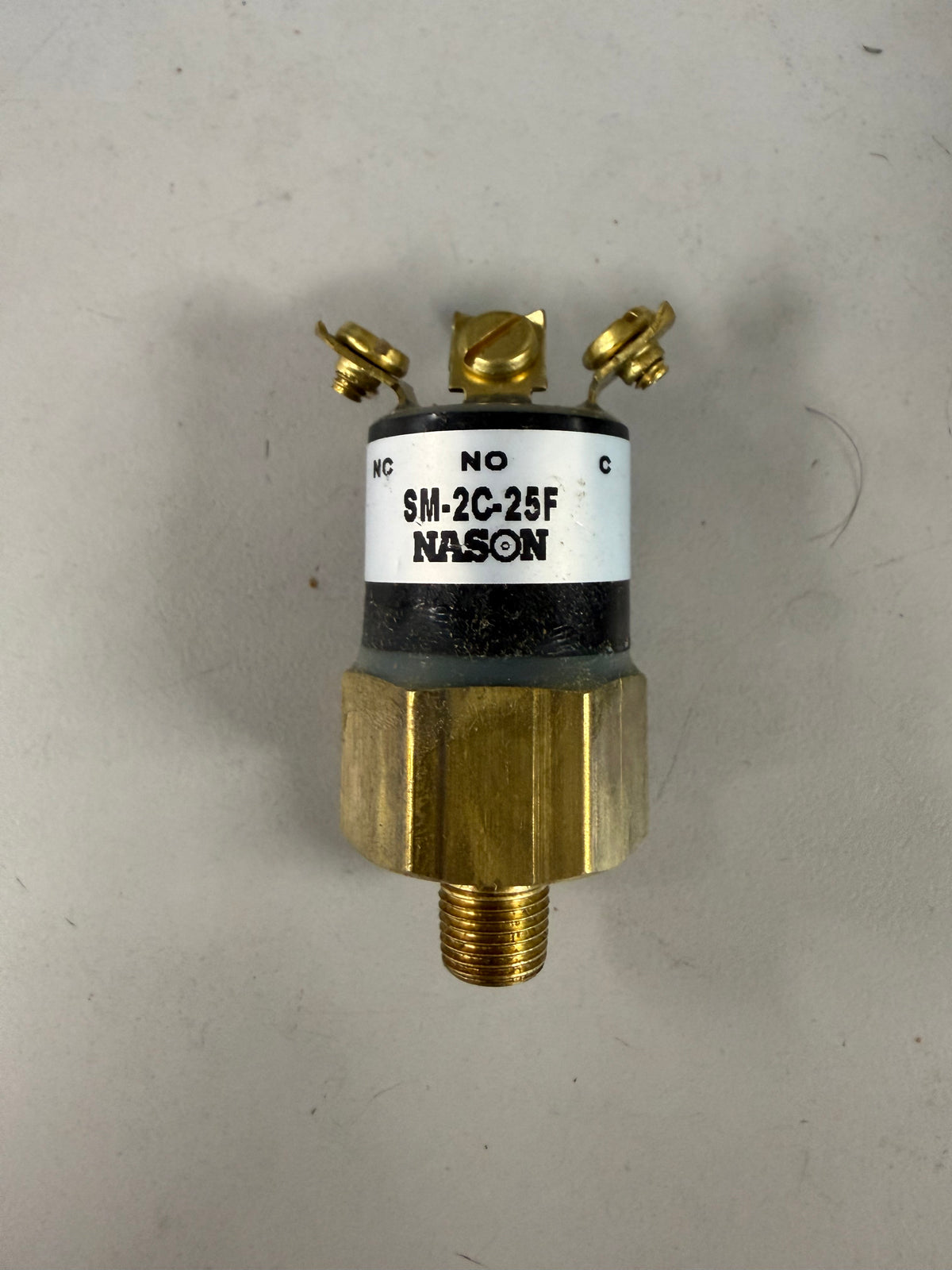

Nason SM-2C-25F (alternatively cataloged as SM-2C-025F) is a factory-preset, low-pressure switch calibrated for pneumatic and hydraulic equipment

Nason SM-2C-25F (alternatively cataloged as SM-2C-025F) is a factory-preset, low-pressure switch calibrated for pneumatic and hydraulic equipment

$95.75 USD
$95.75 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Core Technical Specifications
  • Media Connection: 1/8"-27 NPT Male (Standard Brass)
  • Circuit Form: SPDT (Single Pole Double Throw — operates both Normally Open and Normally Closed lines)
  • Fixed Set Point: 25 PSI, Falling direction
  • Electrical Connection: #8-32 Screw Terminal
  • Electrical Rating: 5 A @ 125/250 VAC / 5 A @ 30 VDC
  • Maximum Operating Pressure: 250 PSI (17 Bar)
  • Diaphragm Material: Standard Buna Nitrile
  • Environmental Rating: NEMA 4, 13 weather protection
