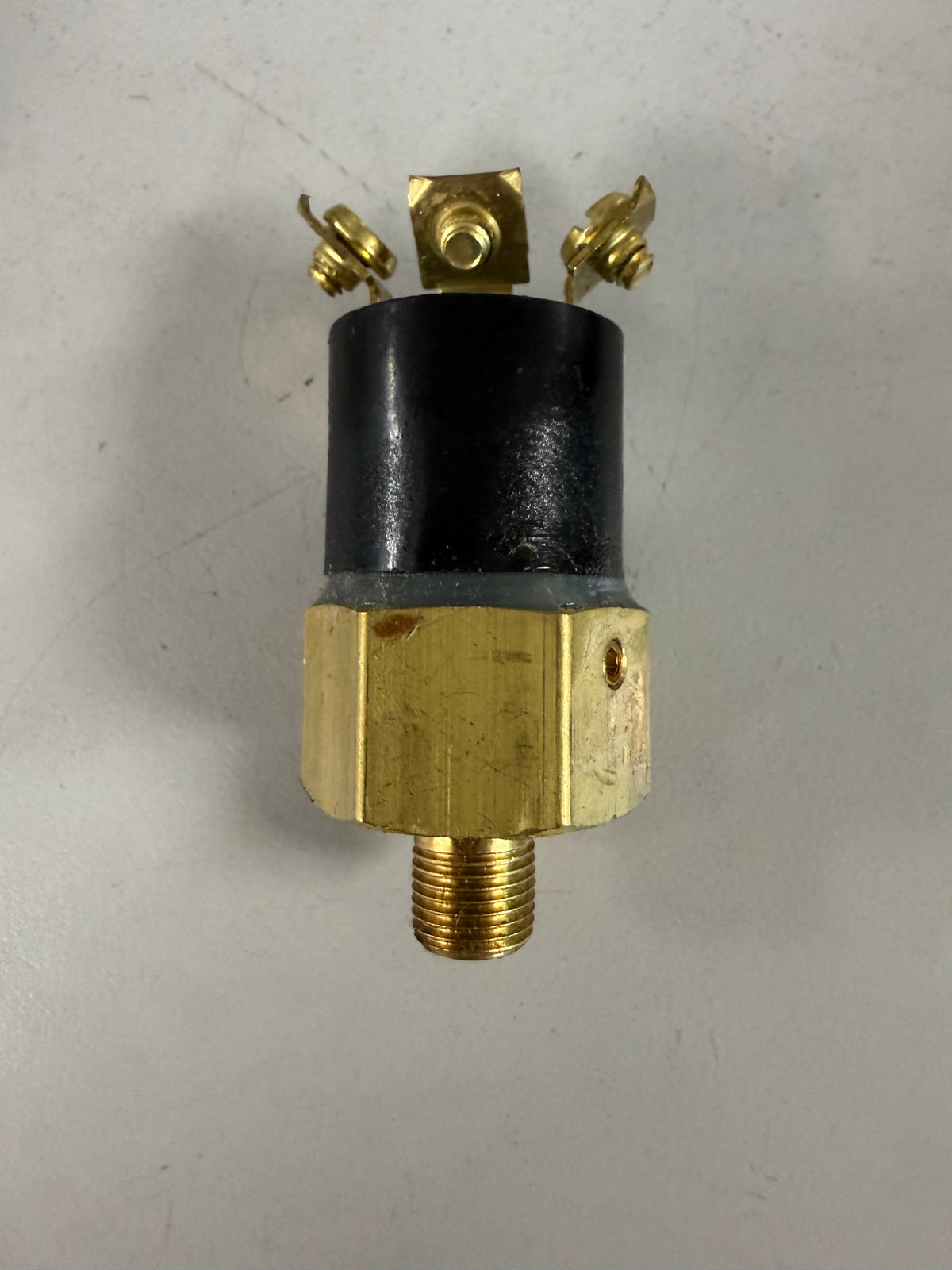

Nason SM-2C-004F is a factory-preset, low-pressure snap-action switch

Nason SM-2C-004F is a factory-preset, low-pressure snap-action switch

$83.40 USD
$83.40 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
  • Model (SM): Fixed, low-pressure snap-action switch featuring a long-life elastomer diaphragm.
  • Media Connection (2): Standard 1/8" NPT male thread process connection.
  • Circuit Form (C): SPDT (Single Pole Double Throw) circuit form. It includes both Normally Open (NO) and Normally Closed (NC) contacts, providing a common connection.
  • Fixed Set Point (004 / 4): Factory preset to actuate at 4 PSI (0.28 Bar).
  • Set Point Direction (F): Falling. The switch actuates when the system pressure drops down to the 4 PSI threshold
